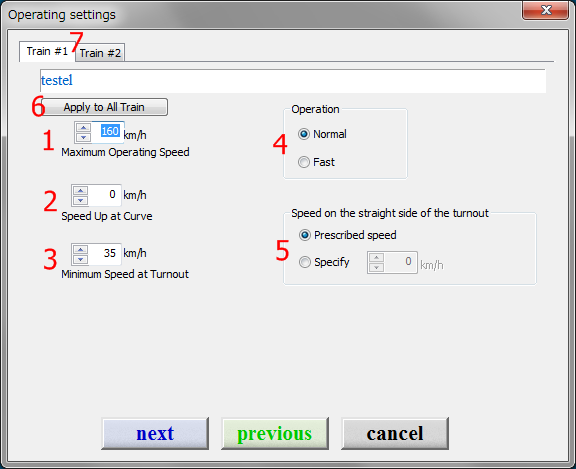

(1) Set the maximum operating speed.
(2) Change the curve speed limit. The selected value is added to all curve speed limit based on the original rule.
(3) Change the minimum speed at the turnout. If the original speed limit is lower than this value, the limit is replaced by this value. This is the function to simulate the track improvement instantly.
(4) Select the powering pattern. "Normal" is energy saving and "Fast" is time saving.
(5) Select the built-in authorized curve
speed limitt by the track gauge of the train to simulate. You can
force the narrow gauge speed limit to the standard gauge train and vice
versa. If the user-defined is
selected, the user-defined curve speed limit selection dialog box pops
app and select the file.
The selected speed limit data is applied in the simulation.
(6) Set the speed limit at the straight side of the turnout. This is applicable to the built-in track profile data. This is the function to simulate the track improvement instantly.
(7) Apply settings in this tab window to all trains currently selected.
(8)Select the train to set driving conditions.
